Your automated garage door is easily the largest, heaviest moving object in your home. While modern overhead doors offer immense convenience, they also carry significant mechanical force. To safeguard your family, pets, and vehicles from devastating impact injuries or property damage, every automatic door system relies on a vital electronic defense system: safety reversal sensors.
Commonly referred to as “photo-eyes,” these small sensors project an invisible infrared beam across the baseline of your garage door opening. If an object, a child, or a family pet breaks this beam while the door is descending, the opener system halts instantly and safely reverses the door to a fully open position.
When your photo-eyes are malfunctioning, misaligned, or completely broken, your garage door can transform from a daily asset into a serious household liability. Professional garage door sensor installation and calibration ensures that your automated entry portal satisfies strict federal safety guidelines while providing reliable, everyday performance through every season.
The Legal and Safety Standards for Garage Photo-Eyes
Electronic safety reversal sensors are not optional accessories; they are strict legal requirements for automated residential entry points. Under federal mandate UL 325, which was officially written into federal law by the United States Congress, all residential garage door openers manufactured or installed after January 1, 1993, must include an inherent or external primary safety reversal mechanism.
The most reliable, universally adopted compliance method is the photoelectric eye system. If your home features an older opener system built before this standard took effect, or if a prior homeowner illegally bypassed the wiring layout, your household is operating at a severe safety disadvantage.
Upgrading to a code-compliant opener paired with professional sensor integration is the absolute smartest way to bring your home up to modern protection codes, protecting you from personal injury claims and home insurance inspection failures. For more comprehensive consumer data on property safety codes and mechanical appliance standards, property owners can consult the official consumer resource guides maintained by the U.S. Consumer Product Safety Commission (CPSC).
Clear Signs Your Garage Door Sensors Need Attention
Because safety sensors sit only a few inches off the concrete garage floor, they operate in a harsh, high-traffic environment. They frequently endure impacts from trash cans, stray sporting goods, or vehicles, alongside exposure to blowing rain and dirt.
If your entry perimeter exhibits any of the following warning behaviors, your photoelectric eyes are likely failing or out of alignment:
The Door Opens Perfectly but Refuses to Close
The most definitive sign of a sensor failure occurs when you try to close your garage door. The door panels will either refuse to move entirely, or they will travel down a few inches, stop suddenly, and reverse back up while the main overhead motor light flashes continuously. This flashing light pattern is the diagnostic code indicating a blocked or disconnected safety loop.
Constant or Intermittent LED Diagnostic Blinking
Every functional safety sensor features a small built-in LED indicator light on the outer casing. One sensor acts as the transmitter (usually showing a solid green light), while the opposing unit acts as the receiver (showing a solid amber or red light). If either of these small indicator bulbs is completely unlit, flickering erratically, or blinking continuously, the infrared connection has been broken.
Visible Physical and Environmental Damage
If you look closely at the sensor brackets clamped to your lower vertical tracks, you may spot signs of physical decay. Corroded copper wiring from winter road salt tracking, cracked plastic lenses, or bent mounting brackets will throw the precise alignment off, triggering immediate system lockdown.
Why DIY Sensor Installation Frequently Fails
At first glance, wiring up two small electronic sensors looks like a quick, simple weekend project. However, achieving code-compliant, long-term operational success requires detailed technical knowledge that standard home tutorials often overlook.
Precision alignment is the most common pitfall. The infrared light projected by a photo-eye is a highly focused, razor-thin beam. If the tracking brackets are misaligned by even a fraction of a millimeter, the receiver sensor will experience an unstable connection. This instability leads to random operational failures, meaning your door might close perfectly in the morning but fail completely in the afternoon when changing outdoor temperatures cause the tracking steel to expand slightly.
Furthermore, correct voltage calibration and wire-splicing are vital. Safety eyes wire directly into the main low-voltage logic board of your ceiling motor unit. Stripping or connecting these wires incorrectly can cause a short circuit on the expensive main motherboard, instantly destroying the automated unit and leading to high replacement costs.
Our Comprehensive Sensor Service Protocol
When our local technicians arrive at your residence to handle your safety system needs, we execute a rigorous, highly specialized installation and tuning checklist:

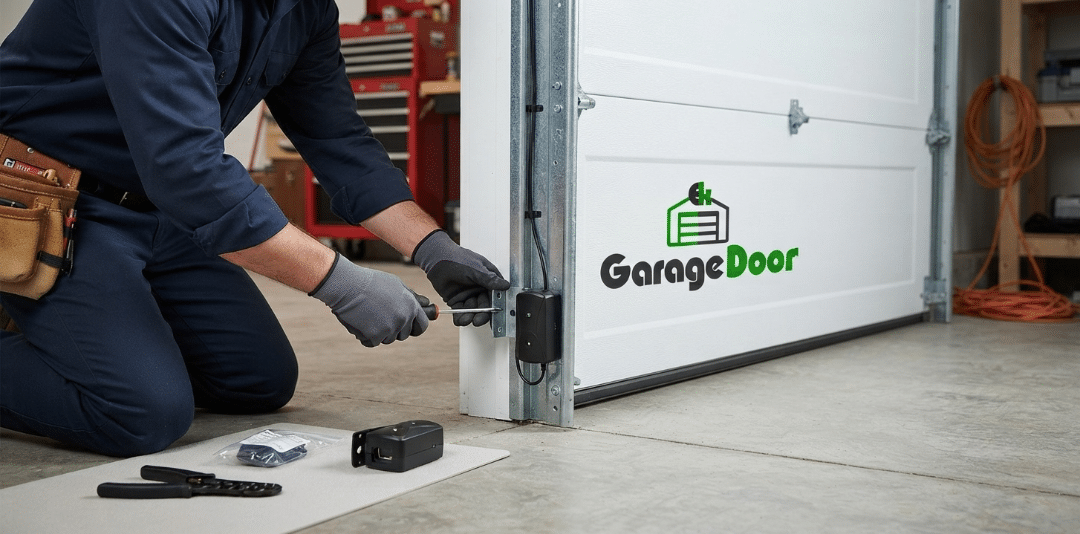

- Precision Structural Positioning: We position the brand-new sensor housings at the legally mandated height, no higher than six inches above the garage floor baseline, ensuring the beam captures low-profile obstructions like small pets or car tires.

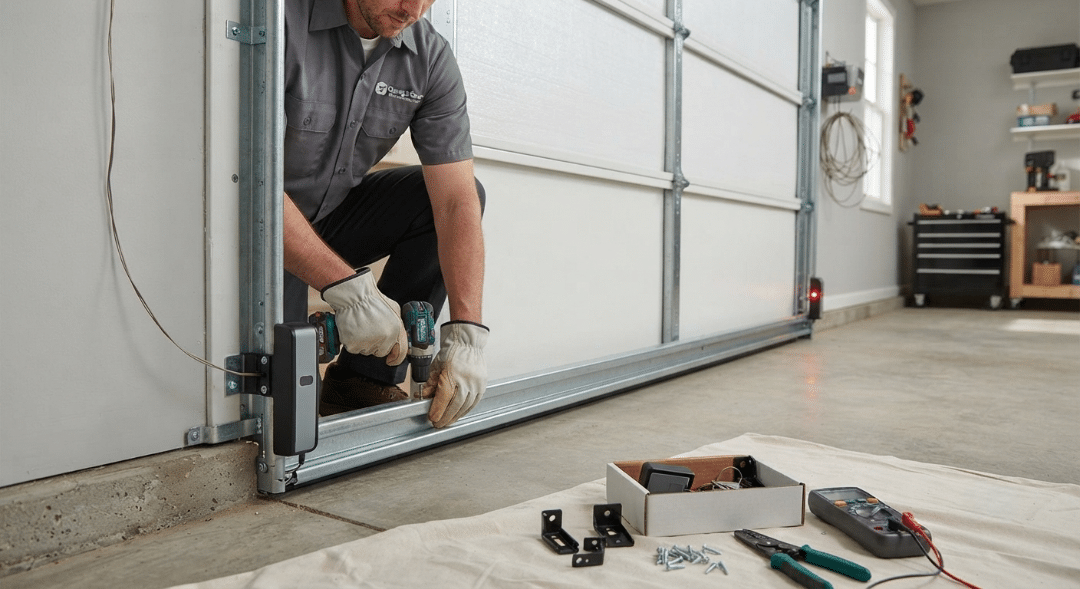

- Heavy-Duty Bracket Anchoring: We install reinforced steel mounting brackets that tightly clamp onto the vertical track radius, providing robust resistance against everyday bumps and minor impacts.
- Advanced Low-Voltage Wiring Integration: We run fresh, insulated solid-copper bell wire along the structural framing, securing it tightly to prevent sagging or accidental snagging by moving door panels.
- Laser Alignment and Testing: We utilize professional electronic alignment tools to ensure the infrared pathway is centered perfectly. We finish the job by executing a physical obstruction test to guarantee the door reverses instantly upon breaking the line.
Restore Complete Safety and Confidence with EK Garage Door
You should never have to cross your fingers or worry about safety issues whenever you close your residential overhead door. The highly trained, fully licensed team at EK Garage Door is ready to assist you with fast, factory-certified sensor installations, precision laser calibrations, and comprehensive system diagnostics across the entire Chicagoland area. We stock our service trucks with premium, universal OEM components compatible with top opener brands like LiftMaster, Chamberlain, and Genie, allowing us to restore complete safety compliance in a single, efficient visit. Head over to our EK Garage Door Services Page or get in touch with our friendly scheduling team today to set up your comprehensive safety evaluation and ensure your home stays protected.
